GW Instek GPP-3610H/7250 Single-Channel Programmable DC Power Supply

Brief description

GPP programmable DC power supply series incorporates two new 360W models, namely the 36V/10A GPP-3610H and the 72V/5A GPP-7250. GPP-3610H provides high programming resolution (1mV/0.2mA) and readback resolution (0.1mV/0.2mA); GPP-7250 provides high programming resolution (2mV/0.2mA) and readback resolution (0.1mV/0.1mA), and the best low ripple noise characteristics <=1mVrms ( 5Hz~ 1MHz) / <=2mArms and output transient recovery capability <=100us.
GPP-3610H and GPP-7250 provide a variety of display modes, including channel setting values, measurement values, and waveform display. Using the output monitoring function of the GPP series, users can set monitoring conditions according to their needs, generate an alarm or stop output during the measurement process, stop the measurement and protect the customer

Properties

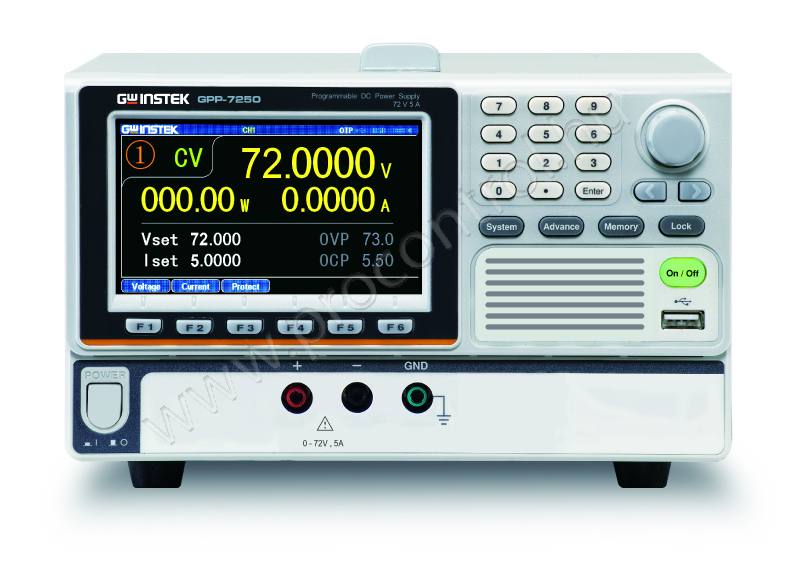

• 4.3” TFT LCD Display
• Programming resolution: 1mV/ 0.2mA (GPP-3610H); 2mV/0.2mA (GPP-7250)
• Readback resolution: 0.1mV/ 0.1mA
• Low ripple noise: ? 1mVrms / ?2mArms
• Transient response time: ?100us
• Load function (CC, CV, CR mode)
• Utilizes hardware to realize over voltage protection / over current protection / over temperature protection
• Delay function/output monitoring function /output recorder function
• Supports setting value, measurement value and output waveform display
• Sequential output function and 8 built-in template waveforms
• The output recorder function records the output voltage & current parameters with a minimum recording interval of 1 second.
• Sequence/delay/recorder/panel setting conditions respectively provide 10 sets of internal storage memory
• Intelligent temperature-controlled fan effectively reduces noise

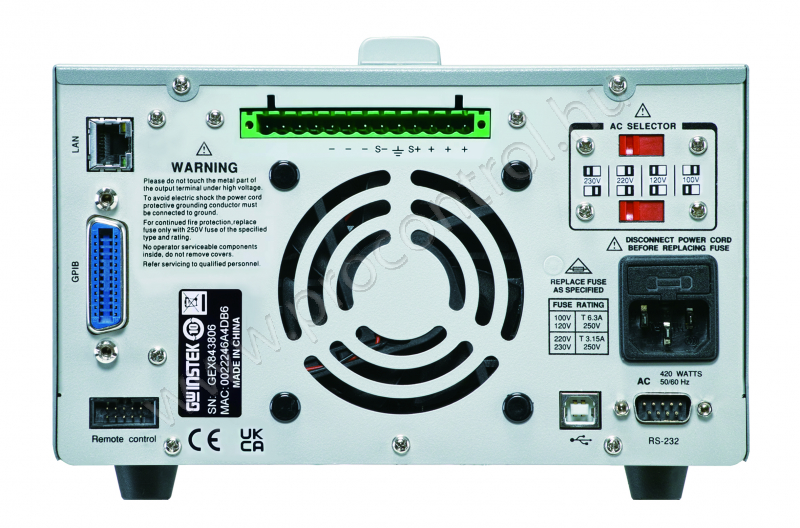

• Standard interface: RS-232, USB, Ext I/O
• Standard interface (manufacturer installed only): LAN, GPIB+LAN

Package contains

• Power cord;
• Test Lead: GTL-104Ax1, GTL-105Ax1
• Optional Accessories: USB Cable GTL-246 USB 2.0 A-B type
• Standard Accessories (Manufacturer installed only): LAN Interface or GPIB LAN Interface

Mentés

Types

GPP-7250 (LAN)(European Type) (CE)
GPP-7250 (GPIB LAN) (European Type) (CE)
GPP-3610H (LAN)(European Type)(CE)
GPP-3610H (GPIB LAN) (European Type) (CE)
