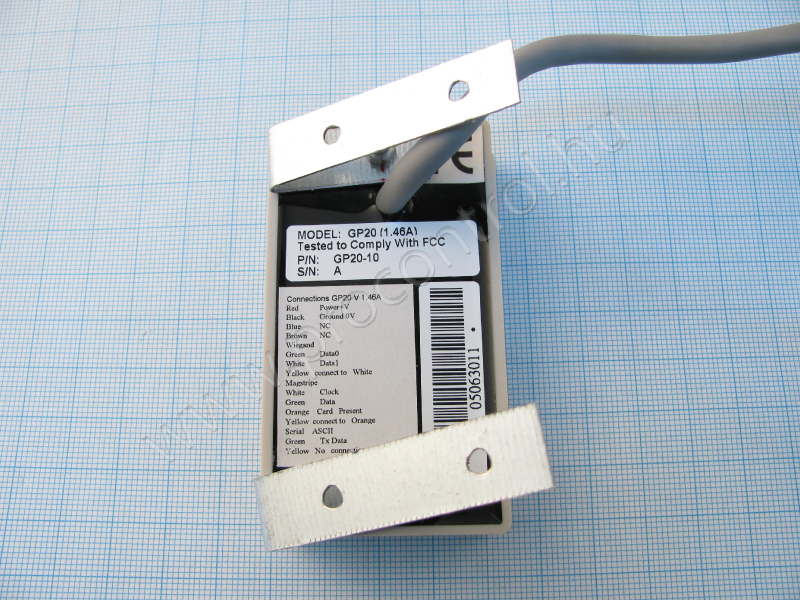

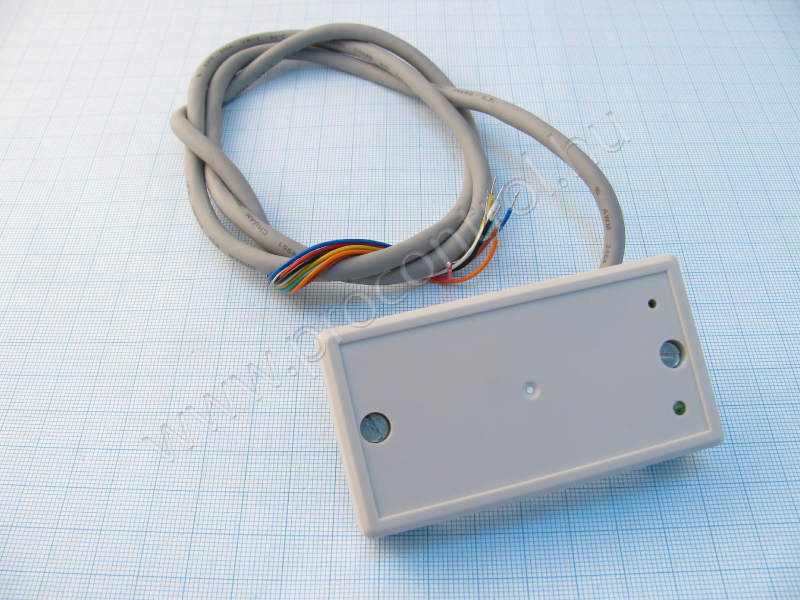

GP20-10 125 KHZ RFID READER

Brief description

GP series RFID readers are high performance proximity RFID readers featuring long range and small dimensions. The readers run from any voltage from 5 to 12.5 VDC and feature high read range at as low as 5 volts making it ideally suited to a wide variety of applications, particularly access control. The same basicRFID unit can be configured to output most of the common interface formats, including Wiegand, Magstripe, Clock/ Data and RS-232 serial ASCII output, making it easy to upgrade existing installations.

Properties

  • Power Requirements: 5 ~ 12.5 V DC regulated, linear
  • Interfaces: Wiegand, Magstripe, Clock/ Data and RS-232 serial ASCII output,
  • Read Range:
  • - GP8: Up to 7 cm without external antenna with ISO card; up to 30 cm with proper external antenna
  • - GP20: Up to 13 cm at 5V with ISO card; up to 20 cm at 12.5V
  • - GP30: Up to 20 cm at 5V with ISO card; up to 30 cm at 12.5V
  • Frequency: 125KHz, ASK
  • Format: 64 bits, Manchester coding
  • Transponder: Read only
  • Dimensions:
  • - GP8 – 41 x 24 x 10 mm
  • - GP20 – 78 x 43 x 15 mm
  • - GP30 – 104 x 63 x 20 mm
  • Temperature Range:
  • - Readers: -25 ~ 65°C
  • - Transponders: -55 ~ 80°C

Technical Description

Wide voltage range
• Potted for environmental protection
• Externally programmable interface
• Weather resistant

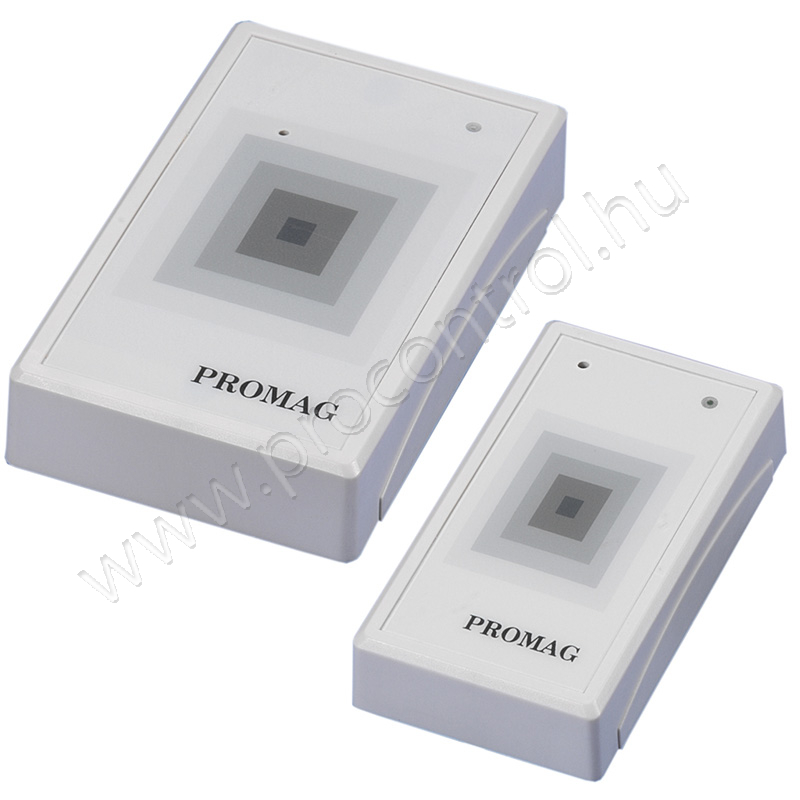

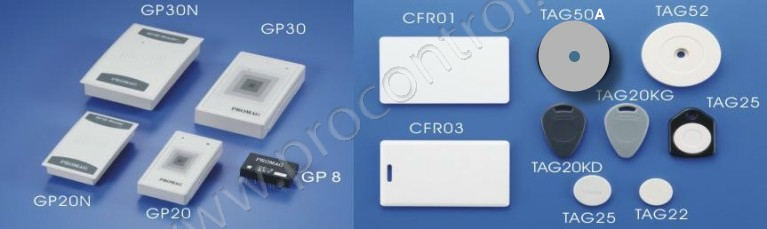

Types

GP8 – Small reader module for OEM applications
GP20 – Up to 20 cm read range, wall-mounting
GP30 – Up to 30 cm read range, wall-mounting
GP60A – Up to 60 cm read range, wall-mounting
GP90A – Up to 90 cm read range, wall-mounting

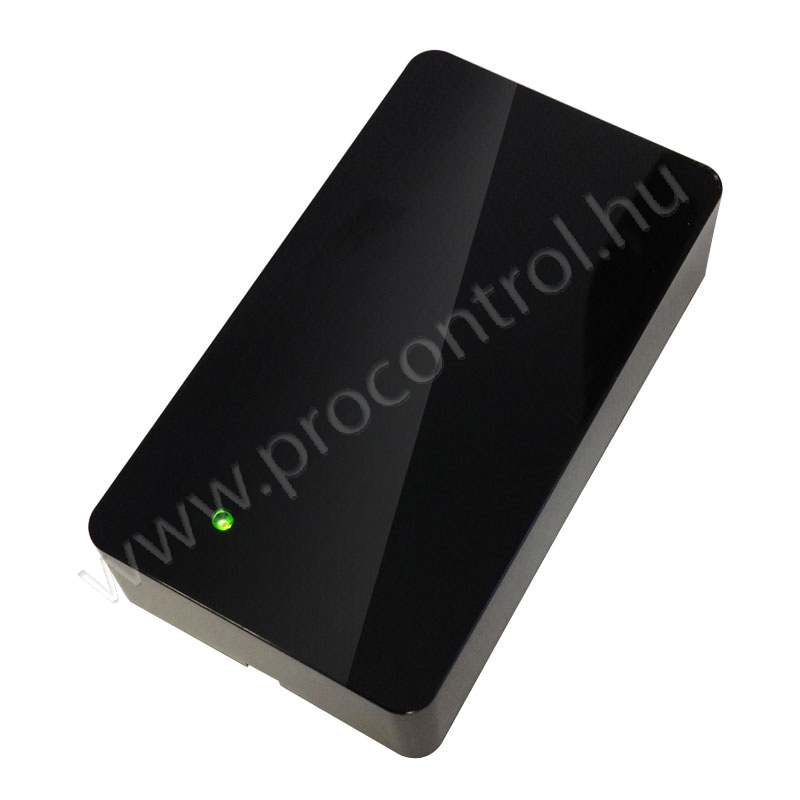

The GP20P has the same reliable 125kHz RFID reader as our GP20 on the inside but has a more attractive, modern gloss "Piano black" finish.

PRODUCT INFORMATION

Product Code: 305616
Manufacturer:
-

Availability

1 pcs
