GWInstek GBM-3100H 1000V akkumulátor mérő

GWInstek GBM-3100H 1000V Battery Meter

Kurzbeschreibung

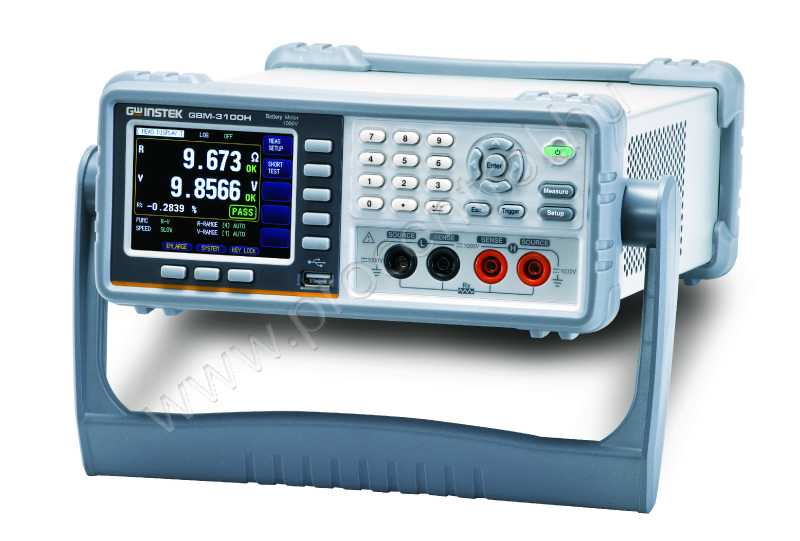

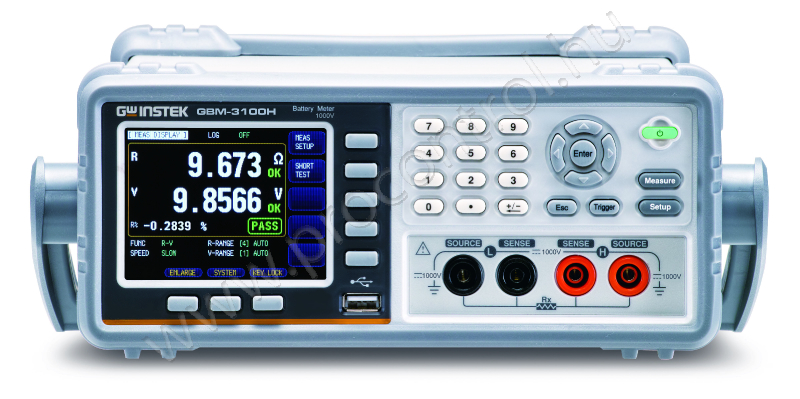

The new GBM-3100H is an expansion model of the existing GBM-3000 series, providing measurement capabilities up to 1000V DC voltage which is suitable for measurement of EV and PHEV battery packs. This expanded model is equipped with a 3.5-inch color display and has high measurement accuracy (0.01%) for battery voltage and (0.5%) for internal resistance of battery.
The GBM-3000 series, which uses AC 1kHz as the test signal and measures battery’s voltage and internal resistance to 1000V (GBM-3100H), 300V (GBM-3300) and 80V (GBM-3080). The series features 3.5" TFT LCD, 4-wire measurement method, high-resolution (6-digit voltage / 5-digit resistance) measurement display capability, and independent GO/NOGO determination of voltage and resistance, various communications interfaces, etc. to meet various types of battery measurements, ranging from single cell, battery cell, to the end product, etc. so as to facilitate users in achieving accurate measurements at all stages of production.

Eigenschaften

  • Click to edit
  • 3.5" TFT LCD (320x240)
  • Measurement: DC voltage and AC resistance
  • - Voltage measurement: 1000 V (GBM-3100H) or 300 V (GBM-3300) or 80 V (GBM-3080), basic accuracy: 0.01%
  • - Resistance measurement: 0mohm ~ 3.2kohm (max.), basic accuracy: 0.5%
  • Measurement resolution up to 0.1µohm and 10µV, suitable for single-cell measurement
  • Independent GO/NOGO determination function for voltage and resistance
  • Standard interfaces: USB host/device, RS-232C and Handler
  • The basic conditions necessary for its operation:
  • - Calibration: Annually
  • - Reset setting: Eliminate the short circuit before testing
  • - The specifications are valid after at least 60 minutes of warm-up.
  • - Accuracy of test current: 10%
  • - Test current frequency accuracy: 1kHz (±0.5Hz)
  • Specification conditions: Temperature: 23°C±5°C, Humidity: <70%RH (non-condensing)
  • Operating conditions: Temperature 0°C ~ 40°C,
  • Relative humidity < 70%RH (non-condensing)
  • Storage conditions: Temperature -40°C ~ 70°C, Relative humidity < 80%RH (non-condensing)
  • Power source: AC 100-240V, 50-60Hz;
  • Consumption max. 10W
  • Dimensions and weight: 264 (W) x 107 (H) x 350 (D) mm, approx. 2.8 kg
  • Test speed
  • - Slow: 4 times/second
  • - Medium: 11 times/second
  • - Fast: 25 times per second
  • - Extremely fast: 60 times/second
  • Range: Automatic range, Holding range, Nominal range
  • Comparator: ABS, PER and SEQ
  • Control resistance: HI/IN/LO, voltage HI/IN/LO and
  • Ringer: OFF, Pass, Fail
  • Launcher: INT, EXT
  • Interface: RS232C, USB host/device, Handlerohm

Paket beinhaltet

  • Safety sheet x 1
  • Power cord x 1
  • GBM-01 x 1 : 4 Wire (kelvin clip) test lead, 90V (max.), approx..1100mm
  • CD x 1 (including complete user manual and USB driver)
  • Free download: Battery Meter PC Software

Typen

GBM-3100H 1000V Battery Meter,
GBM-3300 300V Battery Meter,
GBM-3080 80V Battery Meter

(including RS-232C/USB device/host and HANDLER interface)

Optionen

  • Optional Accessories
  • GBM-02 4 Wire (single pin) test probe, 90V (max.), approx. 1100mm
  • GBM-03 4 Wire (twin pin) test probe, 300V (max.), approx. 1400mm
  • GBM-03A 4 Wire (twin pin) test probe, 1000V (max.), approx. 1400mm
  • GBM-S1 Short Bar (for GBM-02/GBM-03)
  • GTL-232 RS-232C cable, 9-pin Female to 9-pin, null modem for computer, Approx. 2000mm
  • GTL-246 USB cable, A-B type, approx.1200mm
  • GRA-422 Rack Mount kit
  • GRA-454 Rack Mount Kit, 19” 2U size for one or two sets

Funktionen

  • Battery production, research and development, sales, use
